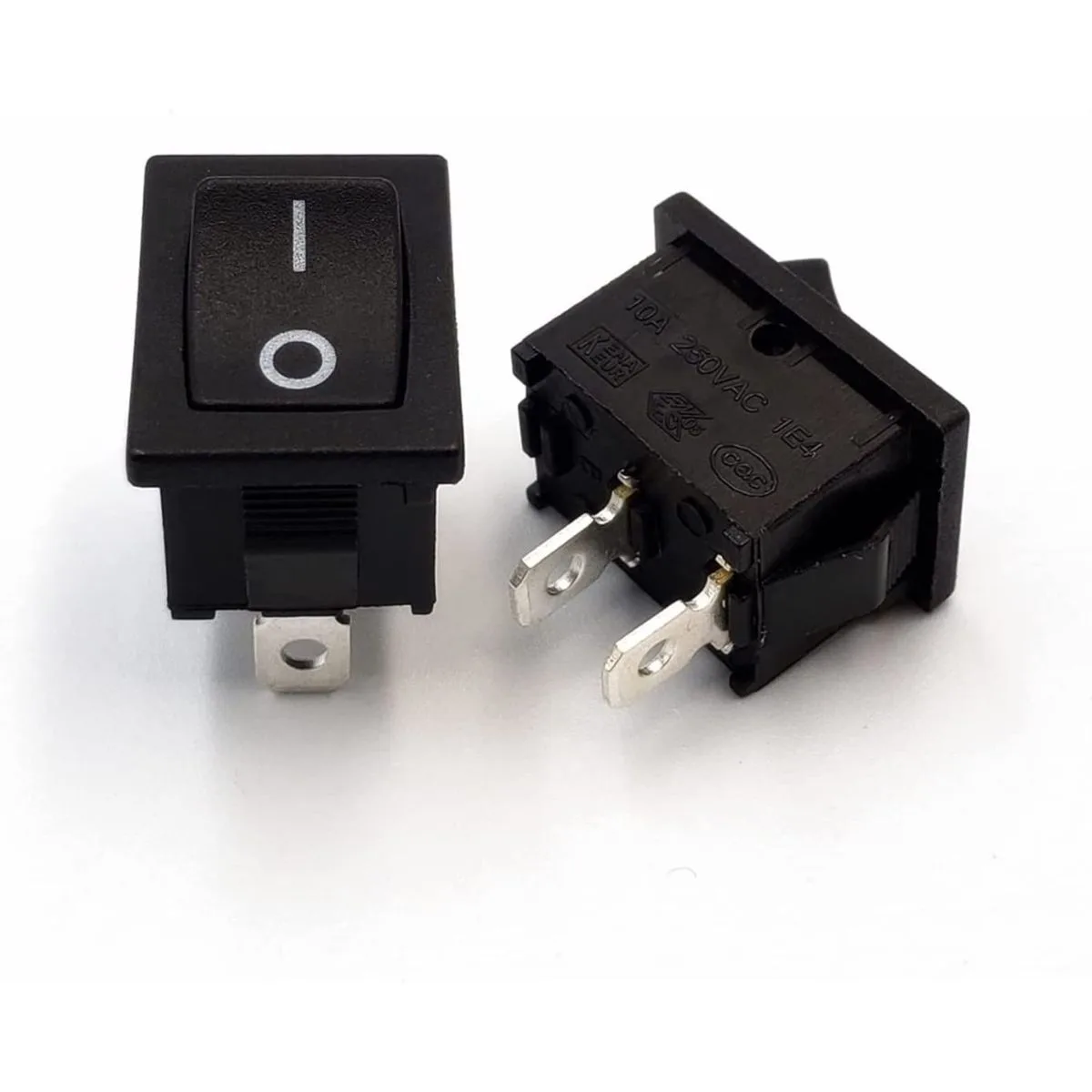

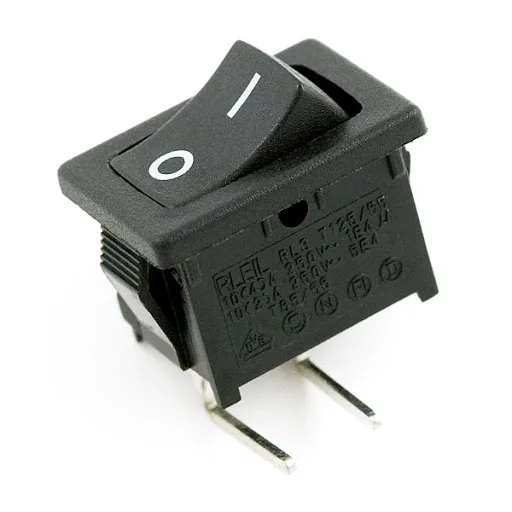

The KCD1-11 is a standard, highly popular miniature rectangular rocker switch primarily used in small electronics, DIY appliances, and control panels.
Key Specifications
-
- Switch Type: Rocker (SPST – Single Pole Single Throw)
- Positions: 2-Position (ON-OFF indicated by
IandO) - Standard Ratings:
-
- 3A at 250V AC
- 6A at 125V AC
-
- Panel Cutout Size: Roughly (10X15mm) (though slight variations like (13.5X9 mm) exist across manufacturers).
- Terminals: Typically 2-pin (though 3-pin variants for illuminated or ON-ON operations are also sold under similar KCD1 sub-labels).
Common Applications
- Small household appliances
- Power strips and extensions
- DIY electronics and microcontroller projects (like Arduino or ESP32 rigs)
- Automotive 12V low-voltage accessories
